Milling is the most common form of machining, a material removal process, which can create a variety of features on a part by cutting away the unwanted material. The milling process requires a milling machine, workpiece, fixture, and cutter. The workpiece is a piece of pre-shaped material that is secured to the fixture, which itself is attached to a platform inside the milling machine. The cutter is a cutting tool with sharp teeth that is also secured in the milling machine and rotates at high speeds. By feeding the workpiece into the rotating cutter, material is cut away from this workpiece in the form of small chips to create the desired shape.

Milling is typically used to produce parts that are not axially symmetric and have many features, such as holes, slots, pockets, and even three dimensional surface contours. Parts that are fabricated completely through milling often include components that are used in limited quantities, perhaps for prototypes, such as custom designed fasteners or brackets. Another application of milling is the fabrication of tooling for other processes. For example, three-dimensional molds are typically milled. Milling is also commonly used as a secondary process to add or refine features on parts that were manufactured using a different process. Due to the high tolerances and surface finishes that milling can offer, it is ideal for adding precision features to a part whose basic shape has already been formed.

Capabilities



Typical

Feasible

Shapes:

Solid: Cubic
Solid: Complex

Flat
Thin-walled: Cylindrical
Thin-walled: Cubic
Thin-walled: Complex
Solid: Cylindrical

Part size:

Length: 1-4000mm
Width: 1-2000mm

Materials:

Metals
Alloy Steel
Carbon Steel
Cast Iron
Stainless Steel
Aluminum
Copper
Magnesium
Zinc

Ceramics
Composites
Lead
Nickel
Tin
Titanium
Elastomer
Thermoplastics
Thermosets

Surface finish – Ra:

16 – 125 μin

8 – 500 μin

Tolerance:

± 0.001 in.

± 0.0005 in.

Lead time:

Days

Hours

Advantages:

All materials compatible
Very good tolerancesShort lead times

Applications:

Machine components, engine components, aerospace industry, automotive industry, oil & gas industry, automation components. Maritime industry.

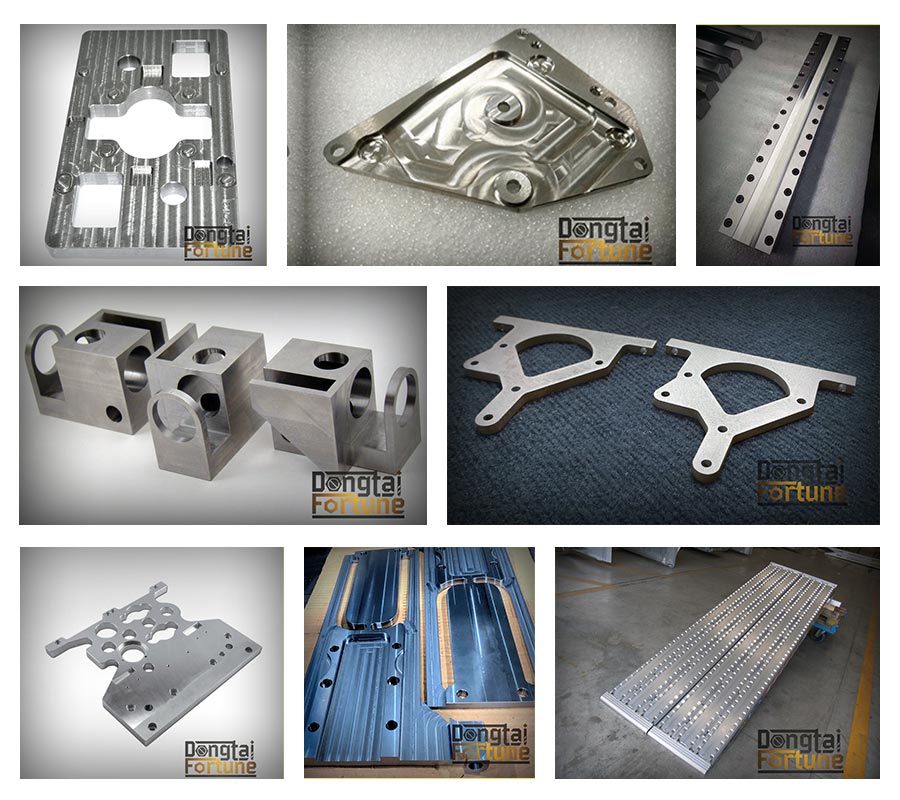

Milled-Parts-Service
